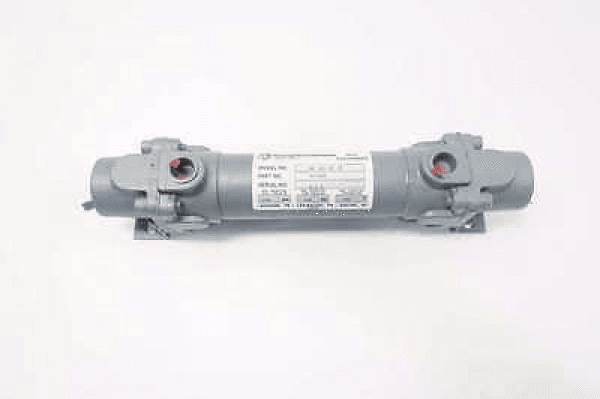

HF (High Pressure) Heat Exchanger

C.H. Bull stocks Model HF high pressure heat exchangers from Young Touchstone. These fixed tube bundle heat exchangers are ideal solutions for nearly any heat transfer application, with multi-pass, close-packed construction that reduces cooling liquid requirements.

Specially designed for higher shell pressures, Model HF heat exchangers are pressure rated to 250 PSI (1725 kPa) for the shell and tubes, with a maximum operating temperature of 350°F. Manufactured with cast iron class 30 and copper materials, these heat exchangers are durable enough for even the toughest applications. Copper nickel options are available for increased corrosion resistance.

Tubes are high temperature bonded into the headers. This allows for minimum tube pitch and a greater number of tubes, which maximizes the cooling surface area per unit volume of space. Bonnets help maintain a smoot flow, with minimal impact on tube ends and tube sheets.

Young Touchstone’s model HF heat exchangers are designed for use with hydraulic fluids, process fluids, and similar media in applications where high pressures are frequently encountered.

C.H. Bull can also provide customization to tailor HF heat exchangers or other products to better suit the needs of your application. Contact us with your custom requirements.

Contact C.H. Bull for Heat Exchangers Today

Request a quote on a model HF high pressure heat exchanger for your application. Contact C.H. Bull to learn more.
