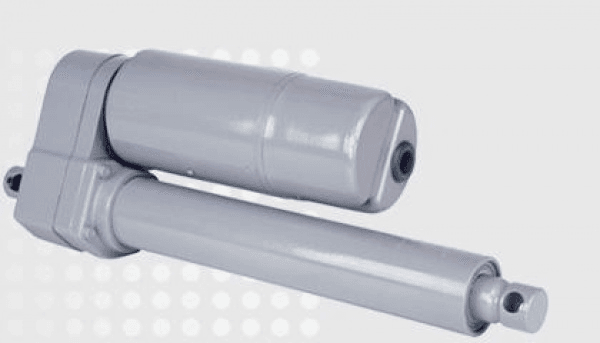

TAL Series Linear Actuator

Duff Norton’s AC-powered TAL Series linear actuators offer 1,000 lbs. lifting/lowering capacity, with 2,000 lbs. static load capacity. Operating on 115 VAC or 220/230 VAC power (varies by model), these actuators have maximum speeds up to 0.45 in/sec (11 mm/sec). Acme screws provide backlash-free operation. Available with strokes of 4”, 8”, 12” and 18” (102 mm, 203 mm, 305 mm, and 457 mm).

Request a quote on TAL Series linear actuators. Contact C.H. Bull to learn more.

TAL Series Linear Actuator Specifications

  • Capacity: 1,000 lbs. (2,000 lbs. static load)
  • Speed: 0.37 to 0.45 in/sec (9 to 11 mm/sec)
  • Power: 115 VAC or 220/230 VAC (varies by model)
  • Stroke: 4” (102 mm), 8” (203 mm), 12” (305 mm), 18” (457 mm)
  • Working temp. range: -20°F to 120°F (-29°C to 50°C)
  • Tube restraining torque: 80 in-lbf
  • IP50 protection

Features & Benefits of TAL Series Actuators

  • Heavy duty construction for extended working life in tough applications
  • Adjustable limit switches
  • Aluminum housing & outer tube; stainless steel translating tube
  • Double clevis mounts
  • Automatic reset for thermal overload protection
  • Optional potentiometer feedback
  • Optional capacitor
  • Optional bellows boot

Linear Actuator Selection Guide

To determine which AC-powered linear actuator is best for your application, consider the factors below. As needed, C.H. Bull is available to help you select the right model for your unique needs. Contact us to discuss your application requirements.

  • Capacity: The force required the move and hold the load (total weight of the load)
  • Voltage: The voltage needed to power the actuator
  • Travel: The distance/range of motion required (stroke)
  • Speed: The speed at which the load must be moved
  • Duty Cycle: Percentage of time an actuator is in motion relative to total time
  • Orientation: The direction in which the actuator’s force is applied
  • Environment: The working conditions in which the actuator will operate

Contact C.H. Bull for Duff Norton TAL Series Linear Actuators

Whatever your motion control needs, we have the right actuator for the job. Request a quote on TAL series linear actuators for your application, or contact C.H. Bull for more information.
